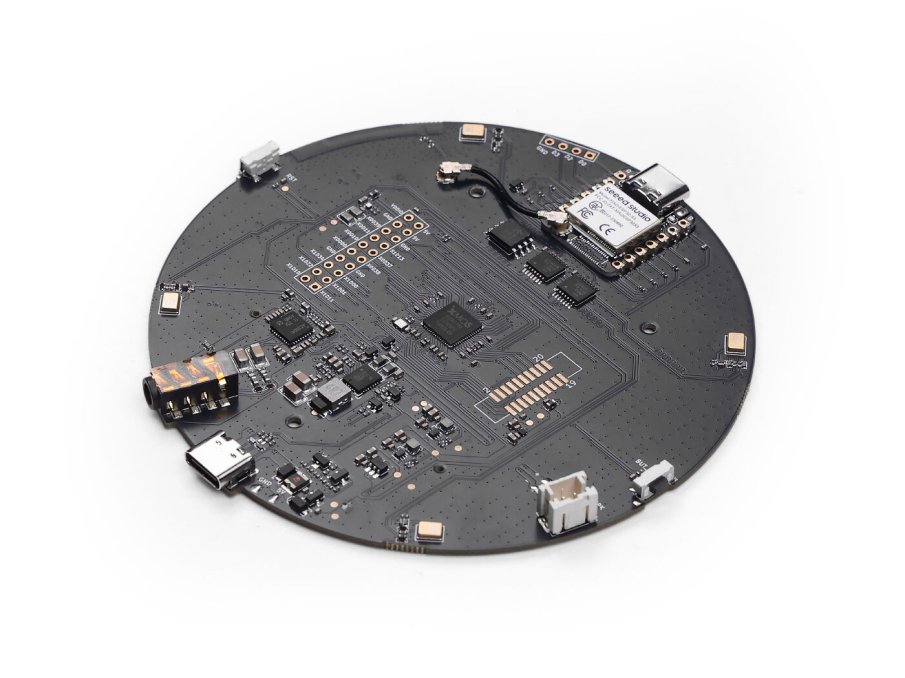

ReSpeaker XVF3800 4-Mic Array Home Assistant Voice Assist

substitutions:
  # Phases of the Voice Assistant
  # The voice assistant is ready to be triggered by a wake word
  voice_assist_idle_phase_id: '1'
  # The voice assistant is waiting for a voice command (after being triggered by the wake word)
  voice_assist_waiting_for_command_phase_id: '2'
  # The voice assistant is listening for a voice command
  voice_assist_listening_for_command_phase_id: '3'
  # The voice assistant is currently processing the command
  voice_assist_thinking_phase_id: '4'
  # The voice assistant is replying to the command
  voice_assist_replying_phase_id: '5'
  # The voice assistant is not ready
  voice_assist_not_ready_phase_id: '10'
  # The voice assistant encountered an error
  voice_assist_error_phase_id: '11'
  # Change this to true in case you ahve a hidden SSID at home.
  hidden_ssid: "false"

esphome:
  name: respeaker-xvf3800-assistant
  friendly_name: reSpeaker XVF3800 Assistant
  project:
    name: reSpeaker.XVF3800Assistant
    version: 2025.7.0
  min_version: 2025.6.2
  on_boot:
    - priority: 375
      then:
        - sensor.template.publish:
            id: next_timer
            state: -1
        # Run the script to refresh the LED status
        - script.execute: control_leds
        # If after 10 minutes, the device is still initializing (It did not yet connect to Home Assistant), turn off the init_in_progress variable and run the script to refresh the LED status
        - delay: 10min
        - if:
            condition:
              lambda: return id(init_in_progress);
            then:
              - lambda: id(init_in_progress) = false;
              - script.execute: control_leds
    - priority: -100
      then:
        - lambda: |-
            id(alarm_time).publish_state(id(saved_alarm_time));
        - lambda: |-
            auto call = id(alarm_action).make_call();
            call.set_option(id(saved_alarm_action));
            call.perform();
        - lambda: |-
            setenv("TZ", id(saved_time_zone).c_str(), 1);
            tzset();
  # on_shutdown:
  #   then:
  #     # Prevent loud noise on software restart
  #     - lambda: id(respeaker).mute_speaker();

esp32:
  board: esp32-s3-devkitc-1
  cpu_frequency: 240MHz
  variant: esp32s3
  flash_size: 8MB
  framework:
    type: esp-idf
    version: recommended
    sdkconfig_options:
      CONFIG_ESP32S3_DATA_CACHE_64KB: "y"
      CONFIG_ESP32S3_DATA_CACHE_LINE_64B: "y"
      CONFIG_ESP32S3_INSTRUCTION_CACHE_32KB: "y"

      # Moves instructions and read only data from flash into PSRAM on boot.
      # Both enabled allows instructions to execute while a flash operation is in progress without needing to be placed in IRAM.
      # Considerably speeds up mWW at the cost of using more PSRAM.
      CONFIG_SPIRAM_RODATA: "y"
      CONFIG_SPIRAM_FETCH_INSTRUCTIONS: "y"

      CONFIG_BT_ALLOCATION_FROM_SPIRAM_FIRST: "y"
      CONFIG_BT_BLE_DYNAMIC_ENV_MEMORY: "y"

      CONFIG_MBEDTLS_EXTERNAL_MEM_ALLOC: "y"
      CONFIG_MBEDTLS_SSL_PROTO_TLS1_3: "y"  # TLS1.3 support isn't enabled by default in IDF 5.1.5

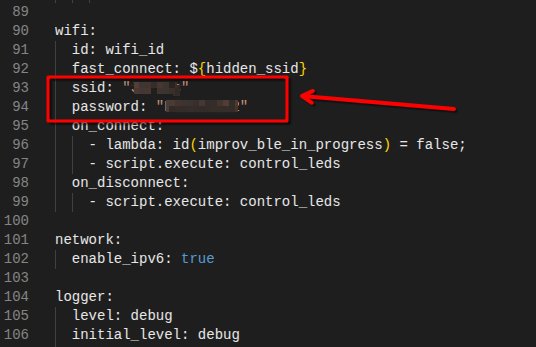

wifi:
  id: wifi_id
  fast_connect: ${hidden_ssid}
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  on_connect:
    - lambda: id(improv_ble_in_progress) = false;
    - script.execute: control_leds
  on_disconnect:
    - script.execute: control_leds

network:
  enable_ipv6: true

logger:
  level: debug
  initial_level: debug
  logs:
    sensor: WARN  # avoids logging debug sensor updates
#  hardware_uart: uart0  #Uncomment to see serial logs via USB connection. Comment out after debufgging - this line introduces noise on speaker...

api:
  id: api_id
  actions:
    - action: start_va
      then:
        - voice_assistant.start
    - action: stop_va
      then:
        - voice_assistant.stop
    - action: set_alarm_time
      variables:
        alarm_time_hh_mm: string
      then:
        - lambda: |-
            if (alarm_time_hh_mm.length() == 5 &&
              isdigit(alarm_time_hh_mm[0]) && isdigit(alarm_time_hh_mm[1]) &&
              isdigit(alarm_time_hh_mm[3]) && isdigit(alarm_time_hh_mm[4])) {
                id(alarm_time).publish_state(alarm_time_hh_mm);
                id(saved_alarm_time) = alarm_time_hh_mm;
              }
    - action: set_time_zone
      variables:
        posix_time_zone: string
      then:
        - lambda: |-
            setenv("TZ", posix_time_zone.c_str(), 1);
            tzset();
            id(saved_time_zone) = posix_time_zone;
            id(publish_current_time).execute();

  on_client_connected:
    - script.execute: control_leds
  on_client_disconnected:
    - script.execute: control_leds

# Uncomment this, if you have problems with text-to-speech because of Home Assistant HTTPS internal URL
# http_request:
#   verify_ssl: false

# ota:
#   - platform: esphome
#     id: ota_esphome
#     password: !secret ota_password

i2c:
  - id: internal_i2c
    sda: GPIO5
    scl: GPIO6
    frequency: 400kHz

psram:
  mode: octal
  speed: 80MHz

globals:
  - id: init_in_progress
    type: bool
    restore_value: no
    initial_value: 'true'
  # Global variable storing the state of ImprovBLE. Used to draw different LED animations
  - id: improv_ble_in_progress
    type: bool
    restore_value: no
    initial_value: 'false'
  # Global variable tracking the phase of the voice assistant (defined above). Initialized to not_ready
  - id: voice_assistant_phase
    type: int
    restore_value: no
    initial_value: ${voice_assist_not_ready_phase_id}
  - id: saved_alarm_time
    type: std::string
    restore_value: yes
    initial_value: '"Unknown"'
  - id: saved_time_zone
    type: std::string
    restore_value: yes
    initial_value: '"UTC0"'
  - id: saved_alarm_action
    type: std::string
    restore_value: yes
    initial_value: '"Play sound"'
  # Global variable storing the first active timer
  - id: first_active_timer
    type: voice_assistant::Timer
    restore_value: no
  # Global variable storing if a timer is active
  - id: is_timer_active
    type: bool
    restore_value: no
  # Global variable storing if a factory reset was requested. If it is set to true, the device will factory reset once the center button is released
  - id: factory_reset_requested
    type: bool
    restore_value: no
    initial_value: 'false'

# Time sync from Home Assistant
time:
  - platform: homeassistant
    id: homeassistant_time
    on_time:
      # Every 1 minute
      - seconds: 0
        minutes: /1
        then:
          - script.execute: check_alarm
    on_time_sync:
      - script.execute: publish_current_time


switch:
  # Hardware speaker mute
  - platform: template
    id: speaker_mute_switch
    name: Speaker mute
    icon: mdi:volume-mute
    internal: true
    optimistic: true
    # turn_on_action:
    #   - lambda: id(respeaker).mute_speaker();
    # turn_off_action:
    #   - lambda: id(respeaker).unmute_speaker();
  # stateless momentary mic mute switch
  - platform: gpio
    internal: true
    pin:
      number: GPIO4 # D3
      inverted: true
    id: mute_toggle
    on_turn_on:
      - delay: 300ms
      - switch.turn_off: mute_toggle
  # stateful user facing mic mute switch
  - platform: template
    id: mic_mute_switch
    name: Mic mute
    icon: mdi:microphone-off
    # lambda: |-
    #   if (id(mute_state).state) {
    #     return true;
    #   } else {
    #     return false;
    #   }
    on_turn_on:
      - if:
          condition:
            and:
              - lambda: return !id(init_in_progress);
              - switch.is_on: mute_sound
          then:
            - script.execute:
                id: play_sound
                priority: false
                sound_file: !lambda return id(mute_switch_on_sound);
    on_turn_off:
      - if:
          condition:
            and:
              - lambda: return !id(init_in_progress);
              - switch.is_on: mute_sound
          then:
            - script.execute:
                id: play_sound
                priority: false
                sound_file: !lambda return id(mute_switch_off_sound);
    turn_on_action:
      - switch.turn_on: mute_toggle
    turn_off_action:
      - switch.turn_on: mute_toggle
  # Button click Sounds Switch.
  - platform: template
    id: button_sound
    name: Button click sounds
    icon: "mdi:bullhorn"
    entity_category: config
    optimistic: true
    restore_mode: RESTORE_DEFAULT_ON
  # Mute Sound Switch.
  - platform: template
    id: mute_sound
    name: Mute/unmute sound
    icon: "mdi:bullhorn"
    entity_category: config
    optimistic: true
    restore_mode: RESTORE_DEFAULT_ON
  # Wake Word Sound Switch.
  - platform: template
    id: wake_sound
    name: Wake sound
    icon: "mdi:bullhorn"
    entity_category: config
    optimistic: true
    restore_mode: RESTORE_DEFAULT_ON
  # Internal switch to track when a timer is ringing on the device.
  - platform: template
    id: timer_ringing
    optimistic: true
    internal: true
    restore_mode: ALWAYS_OFF
    on_turn_off:
      # Disable stop wake word
      - micro_wake_word.disable_model: stop
      - script.execute: disable_repeat
      # Stop any current annoucement (ie: stop the timer ring mid playback)
      - if:
          condition:
            media_player.is_announcing:
          then:
            media_player.stop:
              announcement: true
      # Set back ducking ratio to zero
      - mixer_speaker.apply_ducking:
          id: media_mixing_input
          decibel_reduction: 0
          duration: 1.0s
      # Refresh the LED ring
      - script.execute: control_leds
    on_turn_on:
      # Duck audio
      - mixer_speaker.apply_ducking:
          id: media_mixing_input
          decibel_reduction: 20
          duration: 0.0s
      # Enable stop wake word
      - micro_wake_word.enable_model: stop
      # Ring timer
      - script.execute: ring_timer
      # Refresh LED
      - script.execute: control_leds
      # If 15 minutes have passed and the timer is still ringing, stop it.
      - delay: 15min
      - switch.turn_off: timer_ringing
  # Defines if alarm is active
  - platform: template
    optimistic: true
    restore_mode: RESTORE_DEFAULT_OFF
    id: alarm_on
    icon: mdi:bell-badge
    name: "Alarm on"
    on_turn_on:
      - script.execute: control_leds
    on_turn_off:
      - script.execute: control_leds

binary_sensor:
  # User Button. Used for many things (See on_multi_click)
  - platform: gpio
    id: user_button
    pin:
      number: GPIO3 # D2
      inverted: true
    name: "User button"
    on_press:
      - script.execute: control_leds
    on_release:
      - script.execute: control_leds
      # If a factory reset is requested, factory reset on release
      - if:
          condition:
            lambda: return id(factory_reset_requested);
          then:
            - button.press: factory_reset_button
    on_multi_click:
      # Simple Click:
      #   - Abort "things" in order
      #     - Timer
      #     - Announcements
      #     - Voice Assistant Pipeline run
      #     - Music
      #   - Starts the voice assistant if it is not yet running and if the device is not muted.
      - timing:
          - ON for at most 1s
          - OFF for at least 0.25s
        then:
          - if:
              condition:
                lambda: return !id(init_in_progress);
              then:
                - if:
                    condition:
                      switch.is_on: timer_ringing
                    then:
                      - switch.turn_off: timer_ringing
                    else:
                      - if:
                          condition:
                            voice_assistant.is_running:
                          then:
                            - voice_assistant.stop:
                          else:
                            - if:
                                condition:
                                  media_player.is_announcing:
                                then:
                                  media_player.stop:
                                    announcement: true
                                else:
                                  - if:
                                      condition:
                                        media_player.is_playing:
                                      then:
                                        - media_player.pause:
                                      else:
                                        - if:
                                            condition:
                                              and:
                                                - switch.is_off: mic_mute_switch
                                                - not:
                                                    voice_assistant.is_running
                                            then:
                                              - if:
                                                  condition:
                                                    switch.is_on: button_sound
                                                  then:
                                                    - script.execute:
                                                        id: play_sound
                                                        priority: true
                                                        sound_file: !lambda return id(center_button_press_sound);
                                                    - delay: 300ms
                                              - voice_assistant.start:
      # Double Click
      #  . Exposed as an event entity. To be used in automations inside Home Assistant
      - timing:
          - ON for at most 1s
          - OFF for at most 0.25s
          - ON for at most 1s
          - OFF for at least 0.25s
        then:
          - if:
              condition:
                lambda: return !id(init_in_progress);
              then:
                - if:
                    condition:
                      switch.is_on: button_sound
                    then:
                      - script.execute:
                          id: play_sound
                          priority: false
                          sound_file: !lambda return id(center_button_double_press_sound);
                - event.trigger:
                    id: button_press_event
                    event_type: "double_press"
      # Triple Click
      #  . Exposed as an event entity. To be used in automations inside Home Assistant
      - timing:
          - ON for at most 1s
          - OFF for at most 0.25s
          - ON for at most 1s
          - OFF for at most 0.25s
          - ON for at most 1s
          - OFF for at least 0.25s
        then:
          - if:
              condition:
                lambda: return !id(init_in_progress);
              then:
                - if:
                    condition:
                      switch.is_on: button_sound
                    then:
                      - script.execute:
                          id: play_sound
                          priority: false
                          sound_file: !lambda return id(center_button_triple_press_sound);
                - event.trigger:
                    id: button_press_event
                    event_type: "triple_press"
      # Long Press
      #  . Exposed as an event entity. To be used in automations inside Home Assistant
      - timing:
          - ON for at least 1s
        then:
          - if:
              condition:
                lambda: return !id(init_in_progress);
              then:
                - if:
                    condition:
                      switch.is_on: button_sound
                    then:
                      - script.execute:
                          id: play_sound
                          priority: false
                          sound_file: !lambda return id(center_button_long_press_sound);
                - light.turn_off: led_internal
                - event.trigger:
                    id: button_press_event
                    event_type: "long_press"
      # Factory Reset Warning
      #  . Audible and Visible warning.
      - timing:
          - ON for at least 10s
        then:
          - light.turn_on:
              brightness: 100%
              id: led_internal
              effect: "Factory Reset Coming Up"
          - script.execute:
              id: play_sound
              priority: true
              sound_file: !lambda return id(factory_reset_initiated_sound);
          - wait_until:
              binary_sensor.is_off: user_button
          - if:
              condition:
                lambda: return !id(factory_reset_requested);
              then:
                - light.turn_off: led_internal
                - script.execute:
                    id: play_sound
                    priority: true
                    sound_file: !lambda return id(factory_reset_cancelled_sound);
      # Factory Reset Confirmed.
      #  . Audible warning to prompt user to release the button
      #  . Set factory_reset_requested to true
      - timing:
          - ON for at least 22s
        then:
          - script.execute:
              id: play_sound
              priority: true
              sound_file: !lambda return id(factory_reset_confirmed_sound);
          - light.turn_on:
              brightness: 100%
              red: 100%
              green: 0%
              blue: 0%
              id: led_internal
              effect: "none"
          - lambda: id(factory_reset_requested) = true;

light:
  - platform: esp32_rmt_led_strip
    id: led_internal
    internal: true
    rgb_order: GRB
    pin: GPIO1
    num_leds: 1
    rmt_symbols: 192
    chipset: ws2812
    default_transition_length: 0s
    effects:
      - addressable_lambda:
          name: "Fast Pulse"
          update_interval: 10ms
          lambda: |-
            static float fraction = 0.0;
            static float step = 0.05;
            static bool increasing = true;

            auto values = id(led_internal)->current_values;
            Color color(values.get_red() * 255, values.get_green() * 255, values.get_blue() * 255);
            it[0].set_rgb(color.red * fraction,
                             color.green * fraction,
                             color.blue * fraction);

            fraction += (step * (increasing ? 1 : -1));
            if (fraction > 1.0) {
              fraction = 1.0;
              increasing = !increasing;
            } else if (fraction < 0.0) {
              fraction = 0.0;
              increasing = !increasing;
            }

      - addressable_lambda:
          name: "Slow Pulse"
          update_interval: 30ms
          lambda: |-
            static float fraction = 0.0;
            static float step = 0.05;
            static bool increasing = true;

            auto values = id(led_internal)->current_values;
            Color color(values.get_red() * 255, values.get_green() * 255, values.get_blue() * 255);
            it[0].set_rgb(color.red * fraction,
                             color.green * fraction,
                             color.blue * fraction);

            fraction += (step * (increasing ? 1 : -1));
            if (fraction > 1.0) {
              fraction = 1.0;
              increasing = !increasing;
            } else if (fraction < 0.0) {
              fraction = 0.0;
              increasing = !increasing;
            }
  # User facing LED.
  # Exposed to be used by the user.
  - platform: partition
    id: led_respeaker_onboard
    name: LED Respeaker onboard
    entity_category: config
    icon: "mdi:circle-outline"
    default_transition_length: 0ms
    restore_mode: RESTORE_DEFAULT_OFF
    on_turn_off:
      - script.execute: control_leds
    initial_state:
      color_mode: rgb
      brightness: 100%
      red: 9.4%
      green: 73.3%
      blue: 94.9%
    segments:
      - id: led_internal
        from: 0
        to: 0
    effects:
      - addressable_lambda:
          name: "Fast Pulse"
          update_interval: 10ms
          lambda: |-
            static float fraction = 0.0;
            static float step = 0.05;
            static bool increasing = true;

            auto values = id(led_respeaker_onboard)->current_values;
            Color color(values.get_red() * 255, values.get_green() * 255, values.get_blue() * 255);
            it[0].set_rgb(color.red * fraction,
                             color.green * fraction,
                             color.blue * fraction);

            fraction += (step * (increasing ? 1 : -1));
            if (fraction > 1.0) {
              fraction = 1.0;
              increasing = !increasing;
            } else if (fraction < 0.0) {
              fraction = 0.0;
              increasing = !increasing;
            }

      - addressable_lambda:
          name: "Slow Pulse"
          update_interval: 30ms
          lambda: |-
            static float fraction = 0.0;
            static float step = 0.05;
            static bool increasing = true;

            auto values = id(led_respeaker_onboard)->current_values;
            Color color(values.get_red() * 255, values.get_green() * 255, values.get_blue() * 255);
            it[0].set_rgb(color.red * fraction,
                             color.green * fraction,
                             color.blue * fraction);

            fraction += (step * (increasing ? 1 : -1));
            if (fraction > 1.0) {
              fraction = 1.0;
              increasing = !increasing;
            } else if (fraction < 0.0) {
              fraction = 0.0;
              increasing = !increasing;
            }

sensor:
  - platform: template
    id: next_timer
    name: "Next timer"
    update_interval: never
    disabled_by_default: true
    device_class: duration
    unit_of_measurement: s
    icon: "mdi:timer"

text_sensor:
  - platform: template
    id: next_timer_name
    name: "Next timer name"
    icon: "mdi:timer"
    disabled_by_default: true
  - platform: template
    name: "Alarm time"
    id: alarm_time
    icon: mdi:bell-ring
  - platform: template
    name: "Current device time"
    id: current_time
    icon: mdi:clock

event:
  # Event entity exposed to the user to automate on complex center button presses.
  # The simple press is not exposed as it is used to control the device itself.
  - platform: template
    id: button_press_event
    name: "Button press"
    icon: mdi:button-pointer
    device_class: button
    event_types:
      - double_press
      - triple_press
      - long_press

script:
  # Master script controlling the LEDs, based on different conditions : initialization in progress, wifi and api connected and voice assistant phase.
  # For the sake of simplicity and re-usability, the script calls child scripts defined below.
  # This script will be called every time one of these conditions is changing.
  - id: control_leds
    then:
      - lambda: |
          id(check_if_timers_active).execute();
          if (id(is_timer_active)){
            id(fetch_first_active_timer).execute();
          }
          if (id(improv_ble_in_progress)) {
            id(control_leds_improv_ble_state).execute();
          } else if (id(init_in_progress)) {
            id(control_leds_init_state).execute();
          } else if (!id(wifi_id).is_connected() || !id(api_id).is_connected()){
            id(control_leds_no_ha_connection_state).execute();
          } else if (id(user_button).state) {
            id(control_leds_center_button_touched).execute();
          } else if (id(timer_ringing).state) {
            id(control_leds_timer_ringing).execute();
          } else if (id(voice_assistant_phase) == ${voice_assist_waiting_for_command_phase_id}) {
            id(control_leds_voice_assistant_waiting_for_command_phase).execute();
          } else if (id(voice_assistant_phase) == ${voice_assist_listening_for_command_phase_id}) {
            id(control_leds_voice_assistant_listening_for_command_phase).execute();
          } else if (id(voice_assistant_phase) == ${voice_assist_thinking_phase_id}) {
            id(control_leds_voice_assistant_thinking_phase).execute();
          } else if (id(voice_assistant_phase) == ${voice_assist_replying_phase_id}) {
            id(control_leds_voice_assistant_replying_phase).execute();
          } else if (id(voice_assistant_phase) == ${voice_assist_error_phase_id}) {
            id(control_leds_voice_assistant_error_phase).execute();
          } else if (id(voice_assistant_phase) == ${voice_assist_not_ready_phase_id}) {
            id(control_leds_voice_assistant_not_ready_phase).execute();
          } else if (id(is_timer_active)) {
            id(control_leds_timer_ticking).execute();
          } else if (id(alarm_on).state && !id(led_respeaker_onboard).remote_values.is_on()) {
            id(control_leds_alarm_active).execute();
          } else if (id(voice_assistant_phase) == ${voice_assist_idle_phase_id}) {
            id(control_leds_voice_assistant_idle_phase).execute();
          }

  # Script executed during Improv BLE
  # Warm White slow pulse
  - id: control_leds_improv_ble_state
    then:
      - light.turn_on:
          brightness: !lambda return max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f );
          red: 100%
          green: 89%
          blue: 71%
          id: led_internal
          effect: "Slow Pulse"

  # Script executed during initialization
  # Fast Blue pulse if Wifi is connected, Else slow blue pulse
  - id: control_leds_init_state
    then:
      - if:
          condition:
            wifi.connected:
          then:
            - light.turn_on:
                brightness: !lambda return max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f );
                red: 9%
                green: 73%
                blue: 95%
                id: led_internal
                effect: "Fast Pulse"
          else:
            - light.turn_on:
                brightness: !lambda return max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f );
                red: 9%
                green: 73%
                blue: 95%
                id: led_internal
                effect: "Slow Pulse"
  # Script executed when the device has no connection to Home Assistant
  # Red slow pulse (This will be visible during HA updates for example)
  - id: control_leds_no_ha_connection_state
    then:
      - light.turn_on:
          brightness: !lambda return max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f );
          red: 1
          green: 0
          blue: 0
          id: led_internal
          effect: "Slow Pulse"

  # Script executed when the voice assistant is idle (waiting for a wake word)
  # Nothing
  - id: control_leds_voice_assistant_idle_phase
    then:
      - light.turn_off: led_internal
      - if:
          condition:
            light.is_on: led_respeaker_onboard
          then:
            light.turn_on: led_respeaker_onboard

  # Script executed when the voice assistant is waiting for a command (After the wake word)
  # Slow purple pulse
  - id: control_leds_voice_assistant_waiting_for_command_phase
    then:
      - light.turn_on:
          brightness: !lambda return max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f );
          red: 1
          green: 0.2
          blue: 1
          id: led_internal
          effect: "Slow Pulse"

  # Script executed when the voice assistant is listening to a command
  # Slow purple pulse
  - id: control_leds_voice_assistant_listening_for_command_phase
    then:
      - light.turn_on:
          brightness: !lambda return max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f );
          red: 1
          green: 0.2
          blue: 1
          id: led_internal
          effect: "Slow Pulse"

  # Script executed when the voice assistant is thinking to a command
  # Fast purple pulse
  - id: control_leds_voice_assistant_thinking_phase
    then:
      - light.turn_on:
          brightness: !lambda return max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f );
          red: 1
          green: 0.2
          blue: 1
          id: led_internal
          effect: "Fast Pulse"

  # Script executed when the voice assistant is replying to a command
  # Slow cyan pulse
  - id: control_leds_voice_assistant_replying_phase
    then:
      - light.turn_on:
          brightness: !lambda return max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f );
          red: 0.2
          green: 1
          blue: 1
          id: led_internal
          effect: "Slow Pulse"

  # Script executed when the voice assistant is in error
  # Fast Red Pulse
  - id: control_leds_voice_assistant_error_phase
    then:
      - light.turn_on:
          brightness: !lambda return max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f );
          red: 1
          green: 0
          blue: 0
          id: led_internal
          effect: "Fast Pulse"

  # Script executed when the voice assistant is not ready
  - id: control_leds_voice_assistant_not_ready_phase
    then:
      - light.turn_on:
          brightness: !lambda return max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f );
          red: 1
          green: 0
          blue: 0
          id: led_internal
          effect: "Slow Pulse"

  # Script executed when the center button is touched
  # The LED turns on blue
  - id: control_leds_center_button_touched
    then:
      - light.turn_on:
          brightness: !lambda return min ( max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f ) + 0.1f , 1.0f );
          red: 0
          green: 0
          blue: 1
          id: led_internal
          effect: "None"

  # Script executed when the timer is ringing, to control the LEDs
  # The LED blinks green.
  - id: control_leds_timer_ringing
    then:
      - light.turn_on:
          brightness: !lambda return min ( max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f ) + 0.1f , 1.0f );
          red: 0
          green: 1
          blue: 0
          id: led_internal
          effect: "Fast Pulse"

  # Script executed when the timer is ticking, to control the LEDs
  # Slow dim while pulse.
  - id: control_leds_timer_ticking
    then:
      - light.turn_on:
          brightness: !lambda return max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f );
          red: 0.3
          green: 0.3
          blue: 0.3
          id: led_internal
          effect: "Slow Pulse"

  # Script executed when the alarm is active
  # The LED turns on dim green
  - id: control_leds_alarm_active
    then:
      - light.turn_on:
          brightness: !lambda return 0.3f;
          red: 0
          green: 1
          blue: 0
          id: led_internal
          effect: "None"


  # Script executed when the timer is ringing, to playback sounds.
  - id: ring_timer
    then:
      - script.execute: enable_repeat_one
      - script.execute:
          id: play_sound
          priority: true
          sound_file: !lambda return id(timer_finished_sound);

  # Script executed when the timer is ringing, to repeat the timer finished sound.
  - id: enable_repeat_one
    then:
      # Turn on the repeat mode and pause for 500 ms between playlist items/repeats
      - lambda: |-
            id(external_media_player)
              ->make_call()
              .set_command(media_player::MediaPlayerCommand::MEDIA_PLAYER_COMMAND_REPEAT_ONE)
              .set_announcement(true)
              .perform();
            id(external_media_player)->set_playlist_delay_ms(speaker::AudioPipelineType::ANNOUNCEMENT, 500);

  # Script execute when the timer is done ringing, to disable repeat mode.
  - id: disable_repeat
    then:
      # Turn off the repeat mode and pause for 0 ms between playlist items/repeats
      - lambda: |-
            id(external_media_player)
              ->make_call()
              .set_command(media_player::MediaPlayerCommand::MEDIA_PLAYER_COMMAND_REPEAT_OFF)
              .set_announcement(true)
              .perform();
            id(external_media_player)->set_playlist_delay_ms(speaker::AudioPipelineType::ANNOUNCEMENT, 0);

  # Script executed when we want to play sounds on the device.
  - id: play_sound
    parameters:
      priority: bool
      sound_file: "audio::AudioFile*"
    then:
      - lambda: |-
          if (priority) {
            id(external_media_player)
              ->make_call()
              .set_command(media_player::MediaPlayerCommand::MEDIA_PLAYER_COMMAND_STOP)
              .set_announcement(true)
              .perform();
          }
          if ( (id(external_media_player).state != media_player::MediaPlayerState::MEDIA_PLAYER_STATE_ANNOUNCING ) || priority) {
            id(external_media_player)
              ->play_file(sound_file, true, false);
          }

  # Script used to fetch the first active timer (Stored in global first_active_timer)
  - id: fetch_first_active_timer
    then:
      - lambda: |
          const auto timers = id(va).get_timers();
          auto output_timer = timers.begin()->second;
          for (auto &iterable_timer : timers) {
            if (iterable_timer.second.is_active && iterable_timer.second.seconds_left <= output_timer.seconds_left) {
              output_timer = iterable_timer.second;
            }
          }
          id(first_active_timer) = output_timer;

  # Script used to check if a timer is active (Stored in global is_timer_active)
  - id: check_if_timers_active
    then:
      - lambda: |
          const auto timers = id(va).get_timers();
          bool output = false;
          if (timers.size() > 0) {
            for (auto &iterable_timer : timers) {
              if(iterable_timer.second.is_active) {
                output = true;
              }
            }
          }
          id(is_timer_active) = output;

  # Script used activate the stop word if the TTS step is long.
  # Why is this wrapped on a script?
  #   Becasue we want to stop the sequence if the TTS step is faster than that.
  #   This allows us to prevent having the deactivation of the stop word before its own activation.
  - id: activate_stop_word_once
    then:
      - delay: 1s
      # Enable stop wake word
      - if:
          condition:
            switch.is_off: timer_ringing
          then:
            - micro_wake_word.enable_model: stop
            - wait_until:
                not:
                  media_player.is_announcing:
            - if:
                condition:
                  switch.is_off: timer_ringing
                then:
                  - micro_wake_word.disable_model: stop

  - id: check_alarm
    then:
      - lambda: |-
          id(publish_current_time).execute();
          // Check alarm
          if (id(alarm_on).state && id(alarm_time).has_state()) {
            // Get the stored alarm time from the sensor
            auto set_alarm_time = id(alarm_time).state;
            if (set_alarm_time.length() == 5 &&
              isdigit(set_alarm_time[0]) && isdigit(set_alarm_time[1]) &&
              isdigit(set_alarm_time[3]) && isdigit(set_alarm_time[4])) {
              auto alarm_hour = std::stoi(set_alarm_time.substr(0, 2));
              auto alarm_minute = std::stoi(set_alarm_time.substr(3, 2));

              // Trigger action if current time matches alarm time
              auto time_now = id(homeassistant_time).now();
              if (time_now.hour == alarm_hour && time_now.minute == alarm_minute) {
                auto action = id(alarm_action).state;
                if (action == "Play sound") {
                  id(timer_ringing).turn_on();
                } else if (action == "Send event") {
                  id(send_alarm_event).execute();
                } else if (action == "Sound and event") {
                  id(timer_ringing).turn_on();
                  id(send_alarm_event).execute();
                }
              }
            } else {
              ESP_LOGW("alarm", "Incorrect alarm time setting");
            }
          }
  - id: send_alarm_event
    then:
      - homeassistant.event:
          event: esphome.alarm_ringing
  - id: send_tts_uri_event
    parameters:
      tts_uri: string
    then:
      - homeassistant.event:
          event: esphome.tts_uri
          data:
            uri: !lambda return tts_uri;
  - id: send_stt_text_event
    parameters:
      stt_text: string
    then:
      - homeassistant.event:
          event: esphome.stt_text
          data:
            text: !lambda return stt_text;
  - id: publish_current_time
    then:
      - lambda: |-
          // Publish current time
          auto time_now = id(homeassistant_time).now();
          id(current_time).publish_state(time_now.strftime("%H:%M"));

i2s_audio:
  - id: i2s_output
    i2s_lrclk_pin:
      number: GPIO7
      allow_other_uses: true
    i2s_bclk_pin:
      number: GPIO8
      allow_other_uses: true
    # i2s_mclk_pin:
    #   number: GPIO9
    #   allow_other_uses: true

  - id: i2s_input
    i2s_lrclk_pin:
      number: GPIO7
      allow_other_uses: true
    i2s_bclk_pin:
      number: GPIO8
      allow_other_uses: true
    # i2s_mclk_pin:
    #   number: GPIO9
    #   allow_other_uses: true

microphone:
  - platform: i2s_audio
    id: i2s_mics
    i2s_din_pin: GPIO43
    adc_type: external
    pdm: false
    sample_rate: 16000
    bits_per_sample: 32bit
    i2s_mode: secondary
    i2s_audio_id: i2s_input
    channel: stereo

speaker:
  # Hardware speaker output
  - platform: i2s_audio
    id: i2s_audio_speaker
    sample_rate: 16000
    i2s_mode: secondary
    i2s_dout_pin: GPIO44
    bits_per_sample: 32bit
    i2s_audio_id: i2s_output
    dac_type: external
    channel: stereo
    timeout: never
    buffer_duration: 100ms
    # audio_dac: aic3204_dac

  # Virtual speakers to combine the announcement and media streams together into one output
  - platform: mixer
    id: mixing_speaker
    output_speaker: i2s_audio_speaker
    num_channels: 2
    source_speakers:
      - id: announcement_mixing_input
        timeout: never
      - id: media_mixing_input
        timeout: never

  # Vritual speakers to resample each pipelines' audio, if necessary, as the mixer speaker requires the same sample rate
  - platform: resampler
    id: announcement_resampling_speaker
    output_speaker: announcement_mixing_input
    sample_rate: 16000
    bits_per_sample: 16
  - platform: resampler
    id: media_resampling_speaker
    output_speaker: media_mixing_input
    sample_rate: 16000
    bits_per_sample: 16

media_player:
  - platform: speaker
    id: external_media_player
    name: None
    internal: False
    volume_increment: 0.05
    volume_min: 0.4
    volume_max: 0.85
    announcement_pipeline:
      speaker: announcement_resampling_speaker
      format: FLAC     # FLAC is the least processor intensive codec
      num_channels: 1  # Stereo audio is unnecessary for announcements
      sample_rate: 16000
    media_pipeline:
      speaker: media_resampling_speaker
      format: FLAC     # FLAC is the least processor intensive codec
      num_channels: 2
      sample_rate: 16000
    on_announcement:
      - mixer_speaker.apply_ducking:
          id: media_mixing_input
          decibel_reduction: 20
          duration: 0.0s
    on_state:
      if:
        condition:
          and:
            - switch.is_off: timer_ringing
            - not:
                voice_assistant.is_running:
            - not:
                media_player.is_announcing:
        then:
          - mixer_speaker.apply_ducking:
              id: media_mixing_input
              decibel_reduction: 0
              duration: 1.0s
    files:
      - id: center_button_press_sound
        file: https://github.com/esphome/home-assistant-voice-pe/raw/dev/sounds/center_button_press.flac
      - id: center_button_double_press_sound
        file: https://github.com/esphome/home-assistant-voice-pe/raw/dev/sounds/center_button_double_press.flac
      - id: center_button_triple_press_sound
        file: https://github.com/esphome/home-assistant-voice-pe/raw/dev/sounds/center_button_triple_press.flac
      - id: center_button_long_press_sound
        file: https://github.com/esphome/home-assistant-voice-pe/raw/dev/sounds/center_button_long_press.flac
      - id: factory_reset_initiated_sound
        file: https://github.com/esphome/home-assistant-voice-pe/raw/dev/sounds/factory_reset_initiated.mp3
      - id: factory_reset_cancelled_sound
        file: https://github.com/esphome/home-assistant-voice-pe/raw/dev/sounds/factory_reset_cancelled.mp3
      - id: factory_reset_confirmed_sound
        file: https://github.com/esphome/home-assistant-voice-pe/raw/dev/sounds/factory_reset_confirmed.mp3
      - id: mute_switch_on_sound
        file: https://github.com/esphome/home-assistant-voice-pe/raw/dev/sounds/mute_switch_on.flac
      - id: mute_switch_off_sound
        file: https://github.com/esphome/home-assistant-voice-pe/raw/dev/sounds/mute_switch_off.flac
      - id: timer_finished_sound
        file: https://github.com/esphome/home-assistant-voice-pe/raw/dev/sounds/timer_finished.flac
      - id: wake_word_triggered_sound
        file: https://github.com/esphome/home-assistant-voice-pe/raw/dev/sounds/wake_word_triggered.flac
      - id: error_cloud_expired
        file: https://github.com/esphome/home-assistant-voice-pe/raw/dev/sounds/error_cloud_expired.mp3

# respeaker_lite:
#   id: respeaker
#   reset_pin: GPIO2
#   mute_state:
#     internal: true
#     id: mute_state
#   firmware_version:
#     icon: mdi:application-cog
#     name: XMOS firmware version
#     internal: false
#     id: firmware_version
#   firmware:
#     url: https://github.com/formatBCE/Respeaker-Lite-ESPHome-integration/raw/refs/heads/main/respeaker_lite_i2s_dfu_firmware_48k_v1.1.0.bin
#     version: "1.1.0"
#     md5: 9297155d1bf3eb21a9d4db52a89ea0c6
#     on_begin:
#       - light.turn_on:
#           brightness: !lambda return max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f );
#           red: 50%
#           green: 50%
#           blue: 50%
#           id: led_internal
#           effect: "Slow Pulse"
#     on_end:
#       - light.turn_on:
#           brightness: !lambda return max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f );
#           red: 0%
#           green: 100%
#           blue: 0%
#           id: led_internal
#           effect: "Fast Pulse"
#       - delay: 3s
#       - light.turn_off:
#           id: led_internal
#     on_error:
#       - light.turn_on:
#           brightness: !lambda return max( id(led_respeaker_onboard).current_values.get_brightness() , 0.2f );
#           red: 100%
#           green: 0%
#           blue: 0%
#           id: led_internal
#           effect: "Fast Pulse"
#       - delay: 3s
#       - light.turn_off:
#           id: led_internal

external_components:
  # - source:
  #     type: git
  #     url: https://github.com/formatBCE/esphome
  #     ref: respeaker_microphone
  #   components:
  #     - i2s_audio
  #   refresh: 0s
  - source:
      type: git
      url: https://github.com/formatBCE/Respeaker-Lite-ESPHome-integration
      ref: main
    components:
      - respeaker_lite
    refresh: 0s

# audio_dac:
#   - platform: aic3204
#     id: aic3204_dac
#     i2c_id: internal_i2c

micro_wake_word:
  id: mww
  microphone:
    microphone: i2s_mics
    channels: 0
    # gain_factor: 4
  stop_after_detection: false
  models:
    - model: https://github.com/kahrendt/microWakeWord/releases/download/okay_nabu_20241226.3/okay_nabu.json
      # probability_cutoff: 0.8
      id: okay_nabu
    - model: https://raw.githubusercontent.com/formatBCE/Respeaker-Lite-ESPHome-integration/refs/heads/main/microwakeword/models/v2/kenobi.json
      id: kenobi
    - model: hey_jarvis
      id: hey_jarvis
    - model: hey_mycroft
      id: hey_mycroft
    - model: https://github.com/kahrendt/microWakeWord/releases/download/stop/stop.json
      id: stop
      internal: true
  vad:
    probability_cutoff: 0.05
  on_wake_word_detected:
    # If the wake word is detected when the device is muted (Possible with the software mute switch): Do nothing
    - if:
        condition:
          switch.is_off: mic_mute_switch
        then:
          # If a timer is ringing: Stop it, do not start the voice assistant (We can stop timer from voice!)
          - if:
              condition:
                switch.is_on: timer_ringing
              then:
                - switch.turn_off: timer_ringing
              # Stop voice assistant if running
              else:
                - if:
                    condition:
                      voice_assistant.is_running:
                    then:
                      voice_assistant.stop:
                    # Stop any other media player announcement
                    else:
                      - if:
                          condition:
                            media_player.is_announcing:
                          then:
                            - media_player.stop:
                                announcement: true
                          # Start the voice assistant and play the wake sound, if enabled
                          else:
                            - if:
                                condition:
                                  switch.is_on: wake_sound
                                then:
                                  - script.execute:
                                      id: play_sound
                                      priority: true
                                      sound_file: !lambda return id(wake_word_triggered_sound);
                                  - delay: 300ms
                            - voice_assistant.start:
                                wake_word: !lambda return wake_word;

select:
  - platform: template
    name: "Wake word sensitivity"
    optimistic: true
    initial_option: Slightly sensitive
    restore_value: true
    entity_category: config
    options:
      - Slightly sensitive
      - Moderately sensitive
      - Very sensitive
    on_value:
      # Sets specific wake word probabilities computed for each particular model
      # Note probability cutoffs are set as a quantized uint8 value, each comment has the corresponding floating point cutoff
      # False Accepts per Hour values are tested against all units and channels from the Dinner Party Corpus.
      # These cutoffs apply only to the specific models included in the firmware: okay_nabu@20241226.3, hey_jarvis@v2, hey_mycroft@v2
      lambda: |-
        if (x == "Slightly sensitive") {
          id(okay_nabu).set_probability_cutoff(217);    // 0.85 -> 0.000 FAPH on DipCo (Manifest's default)
          id(hey_jarvis).set_probability_cutoff(247);   // 0.97 -> 0.563 FAPH on DipCo (Manifest's default)
          id(hey_mycroft).set_probability_cutoff(253);  // 0.99 -> 0.567 FAPH on DipCo
        } else if (x == "Moderately sensitive") {
          id(okay_nabu).set_probability_cutoff(176);    // 0.69 -> 0.376 FAPH on DipCo
          id(hey_jarvis).set_probability_cutoff(235);   // 0.92 -> 0.939 FAPH on DipCo
          id(hey_mycroft).set_probability_cutoff(242);  // 0.95 -> 1.502 FAPH on DipCo (Manifest's default)
        } else if (x == "Very sensitive") {
          id(okay_nabu).set_probability_cutoff(143);    // 0.56 -> 0.751 FAPH on DipCo
          id(hey_jarvis).set_probability_cutoff(212);   // 0.83 -> 1.502 FAPH on DipCo
          id(hey_mycroft).set_probability_cutoff(237);  // 0.93 -> 1.878 FAPH on DipCo
        }
  - platform: logger
    id: logger_select
    name: Logger Level
    disabled_by_default: true
  - platform: template
    optimistic: true
    name: "Alarm action"
    id: alarm_action
    icon: mdi:bell-plus
    options:
      - "Play sound"
      - "Send event"
      - "Sound and event"
    initial_option: "Play sound"
    on_value:
      then:
        - lambda: |-
            id(saved_alarm_action) = x;

voice_assistant:
  id: va
  microphone:
    microphone: i2s_mics
    channels: 1
  media_player: external_media_player
  micro_wake_word: mww
  use_wake_word: false
  noise_suppression_level: 0
  auto_gain: 0 dbfs
  volume_multiplier: 1
  on_client_connected:
    - if:
        condition:
          - lambda: return id(init_in_progress);
          - switch.is_on: mic_mute_switch
        then:
          - switch.turn_off: mic_mute_switch
    - lambda: id(init_in_progress) = false;
    - micro_wake_word.start:
    - lambda: id(voice_assistant_phase) = ${voice_assist_idle_phase_id};
    - script.execute: control_leds
  on_client_disconnected:
    - voice_assistant.stop:
    - lambda: id(voice_assistant_phase) = ${voice_assist_not_ready_phase_id};
    - script.execute: control_leds
  on_error:
    # Only set the error phase if the error code is different than duplicate_wake_up_detected or stt-no-text-recognized
    # These two are ignored for a better user experience
    - if:
        condition:
          and:
            - lambda: return !id(init_in_progress);
            - lambda: return code != "duplicate_wake_up_detected";
            - lambda: return code != "stt-no-text-recognized";
        then:
          - lambda: id(voice_assistant_phase) = ${voice_assist_error_phase_id};
          - script.execute: control_leds
    # If the error code is cloud-auth-failed, serve a local audio file guiding the user.
    - if:
        condition:
          - lambda: return code == "cloud-auth-failed";
        then:
          - script.execute:
              id: play_sound
              priority: true
              sound_file: !lambda return id(error_cloud_expired);
  # When the voice assistant starts: Play a wake up sound, duck audio.
  on_start:
    - mixer_speaker.apply_ducking:
        id: media_mixing_input
        decibel_reduction: 20  # Number of dB quieter; higher implies more quiet, 0 implies full volume
        duration: 0.0s         # The duration of the transition (default is no transition)
  on_listening:
    - lambda: id(voice_assistant_phase) = ${voice_assist_waiting_for_command_phase_id};
    - script.execute: control_leds
  on_stt_vad_start:
    - lambda: id(voice_assistant_phase) = ${voice_assist_listening_for_command_phase_id};
    - script.execute: control_leds
  on_stt_vad_end:
    - lambda: id(voice_assistant_phase) = ${voice_assist_thinking_phase_id};
    - script.execute: control_leds
  on_intent_progress:
    - if:
        condition:
          # A nonempty x variable means a streaming TTS url was sent to the media player
          lambda: 'return !x.empty();'
        then:
          - lambda: id(voice_assistant_phase) = ${voice_assist_replying_phase_id};
          - script.execute: control_leds
          # Start a script that would potentially enable the stop word if the response is longer than a second
          - script.execute: activate_stop_word_once
  on_tts_start:
    - if:
        condition:
          # The intent_progress trigger didn't start the TTS Reponse
          lambda: 'return id(voice_assistant_phase) != ${voice_assist_replying_phase_id};'
        then:
          - lambda: id(voice_assistant_phase) = ${voice_assist_replying_phase_id};
          - script.execute: control_leds
          # Start a script that would potentially enable the stop word if the response is longer than a second
          - script.execute: activate_stop_word_once
  on_tts_end:
    - script.execute:
        id: send_tts_uri_event
        tts_uri: !lambda 'return x;'
  on_stt_end:
    - script.execute:
        id: send_stt_text_event
        stt_text: !lambda 'return x;'

  # When the voice assistant ends ...
  on_end:
    - wait_until:
        not:
          voice_assistant.is_running:
    # Stop ducking audio.
    - mixer_speaker.apply_ducking:
        id: media_mixing_input
        decibel_reduction: 0
        duration: 1.0s
    # If the end happened because of an error, let the error phase on for a second
    - if:
        condition:
          lambda: return id(voice_assistant_phase) == ${voice_assist_error_phase_id};
        then:
          - delay: 1s
    # Reset the voice assistant phase id and reset the LED animations.
    - lambda: id(voice_assistant_phase) = ${voice_assist_idle_phase_id};
    - script.execute: control_leds
  on_timer_finished:
    - switch.turn_on: timer_ringing
    - lambda: |
        id(next_timer).publish_state(-1);
        id(next_timer_name).publish_state("-");
  on_timer_started:
    - script.execute: control_leds
    - lambda: |
        id(next_timer).publish_state(id(first_active_timer).seconds_left);
        id(next_timer_name).publish_state(id(first_active_timer).name);
  on_timer_cancelled:
    - script.execute: control_leds
    - lambda: |
        id(next_timer).publish_state(id(first_active_timer).seconds_left);
        id(next_timer_name).publish_state(id(first_active_timer).name);
  on_timer_updated:
    - script.execute: control_leds
    - lambda: |
        id(next_timer).publish_state(id(first_active_timer).seconds_left);
        id(next_timer_name).publish_state(id(first_active_timer).name);
  on_timer_tick:
    - script.execute: control_leds
    - lambda: |
        int seconds_left = id(first_active_timer).seconds_left;
        if (std::abs(seconds_left) % 5 == 0) {
          id(next_timer).publish_state(seconds_left);
        }

button:
  - platform: factory_reset
    id: factory_reset_button
    name: "Factory Reset"
    entity_category: diagnostic
    internal: true
  - platform: restart
    id: restart_button
    name: "Restart"
    entity_category: config
    disabled_by_default: true
    icon: "mdi:restart"

debug:
  update_interval: 5s
